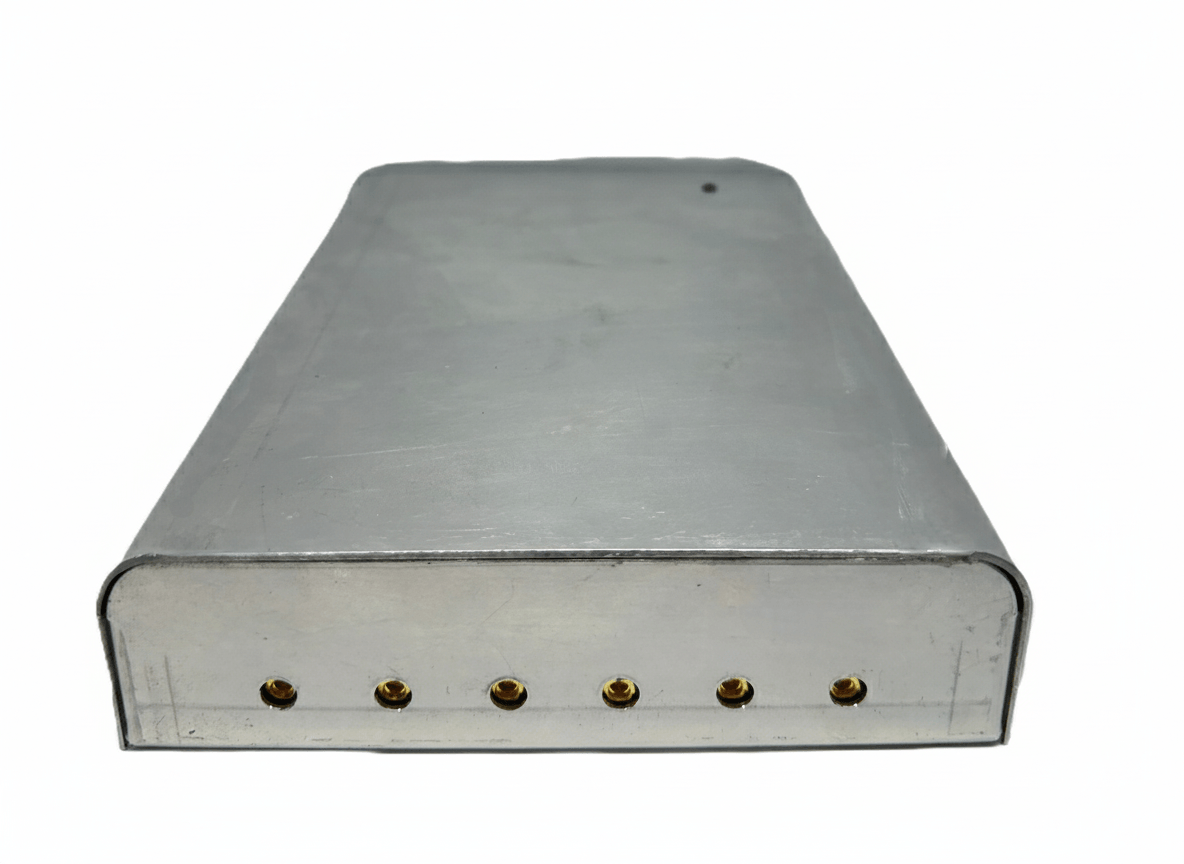

UHF RFID Multiport Reader (RRUHFFR6)
Description
The RRUHFFR6 is a high-performance 6-port UHF RFID reader engineered for advanced applications requiring robust tag reading across specific areas. Operating at 865–868 MHz, it supports ISO 18000-6C / EPC Class 1 Gen 2 tags and utilizes the Impinj Eseries chip for superior sensitivity and reliability.
It can support applications like smart trolley & drawers, retail checkout station, logistics parcel sorting etc.
Features & Benefit:
- Make in India
- Simultaneous Sequential Tag Reading
- Latest Impinj E Series
- SDK included
- Robust Performance
Additional information
| Frequency |
|---|
Technical Specifications
| Product Code | RRUHFFR6 |
|---|---|
| Operating Frequency | 865 to 868 MHz |
| Antenna | External |
| Protocol | ISO 18000 6-C |
| Supply Voltage | 9V to 30V DC |
| Output Power | Up to 30 dBm Software adjustable |
| Communication Interface | Ethernet |
| Operating Temperature | 0°C to +65°C |
| Dimensions | 168.60 mm X 105.40 mm |
| Weight | 0.250 Kg approx. |
| No of Antenna ports | 06 |
| Relay | Up to 2 relays |
Downloads
| Sr. No. | Type | Description | Download | Upload Date |
|---|---|---|---|---|
| 1 | Datasheet | Google Drive link |  |
15th Oct 2026 |
| 2 | SDK | Google Drive link |  |
28th Mar 2024 |
| 3 | SDK Manual | Google Drive link | |
15th Oct 2026 |
| 4 | Communication Protocol | Google Drive link | |
2nd Feb 2025 |
