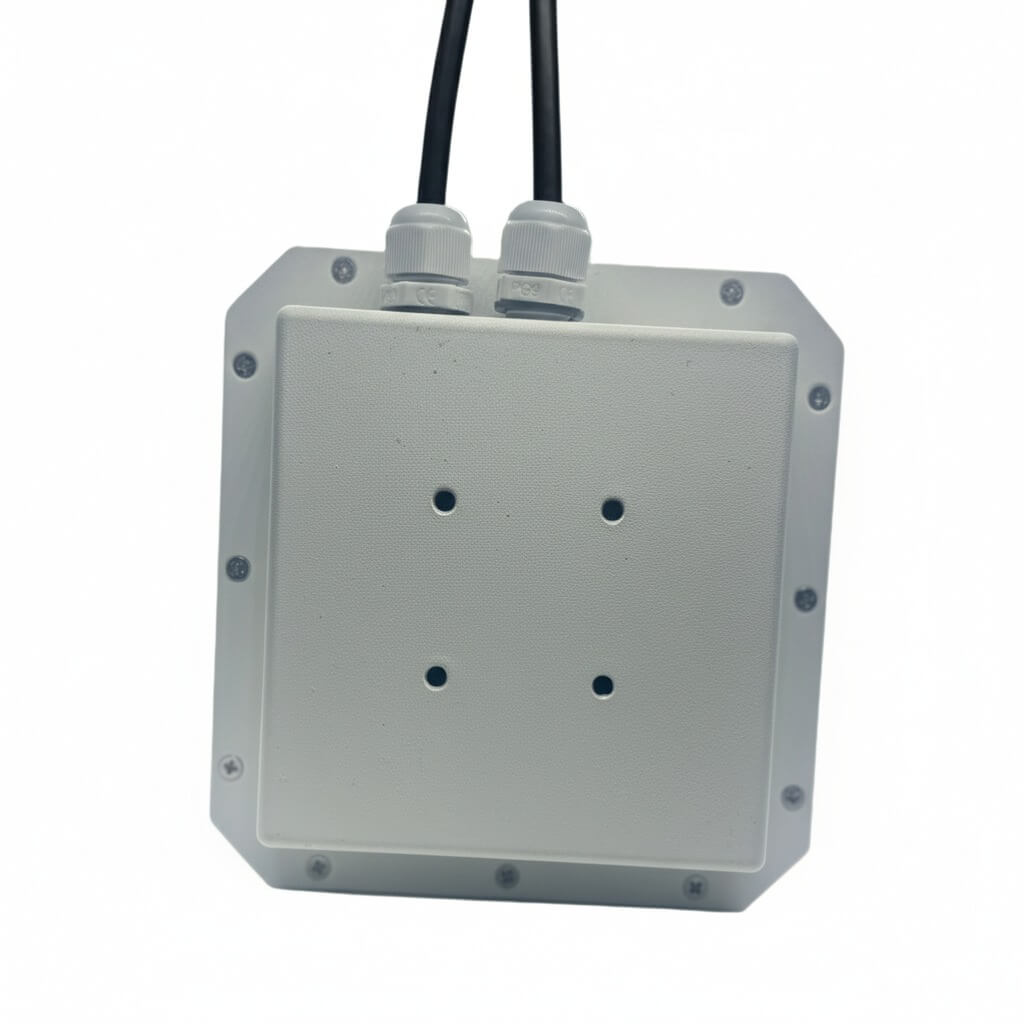

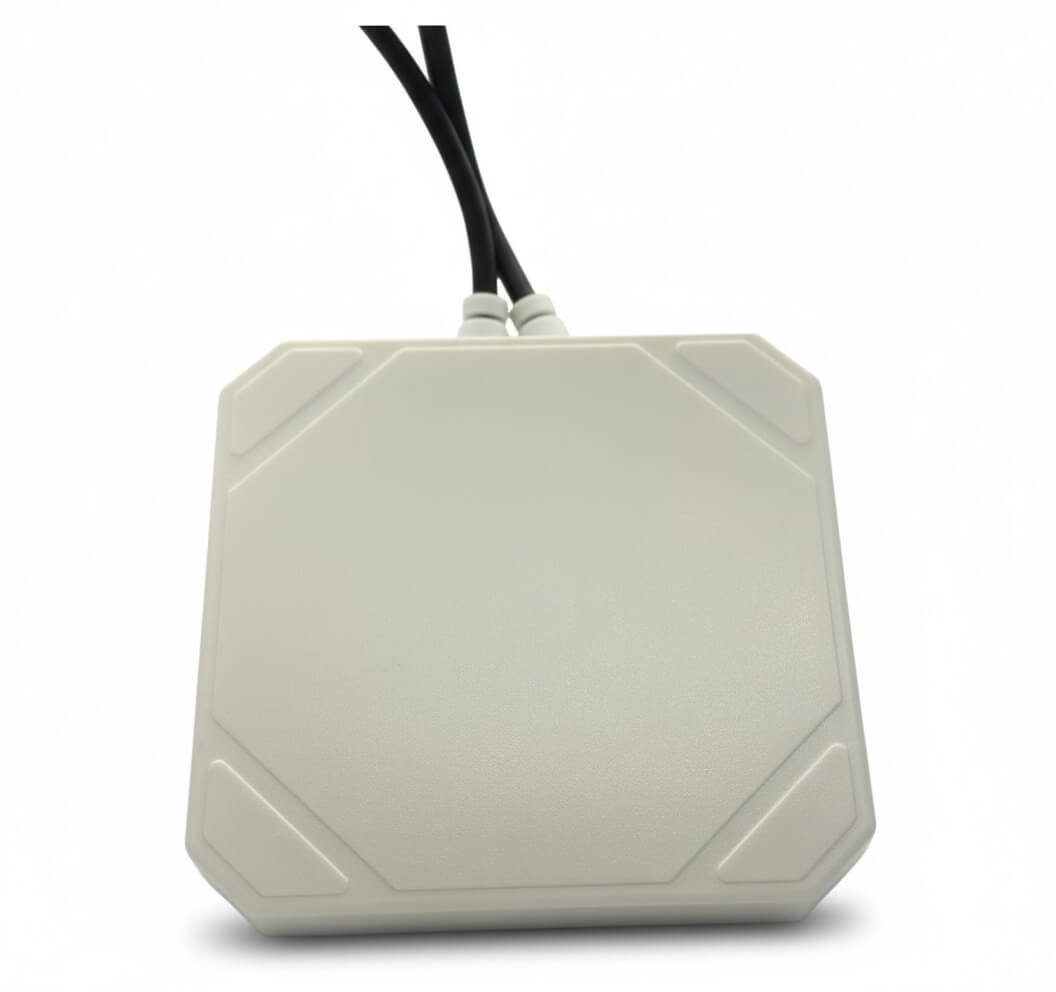

UHF Mini Integrated RFID Reader (RRUHFR03M)
Description
RRUHFR03M is a UHF Integrated RFID Reader operating at 865 to 867 MHz. It works with an internal antenna and reads ISO 18000-6C tags.

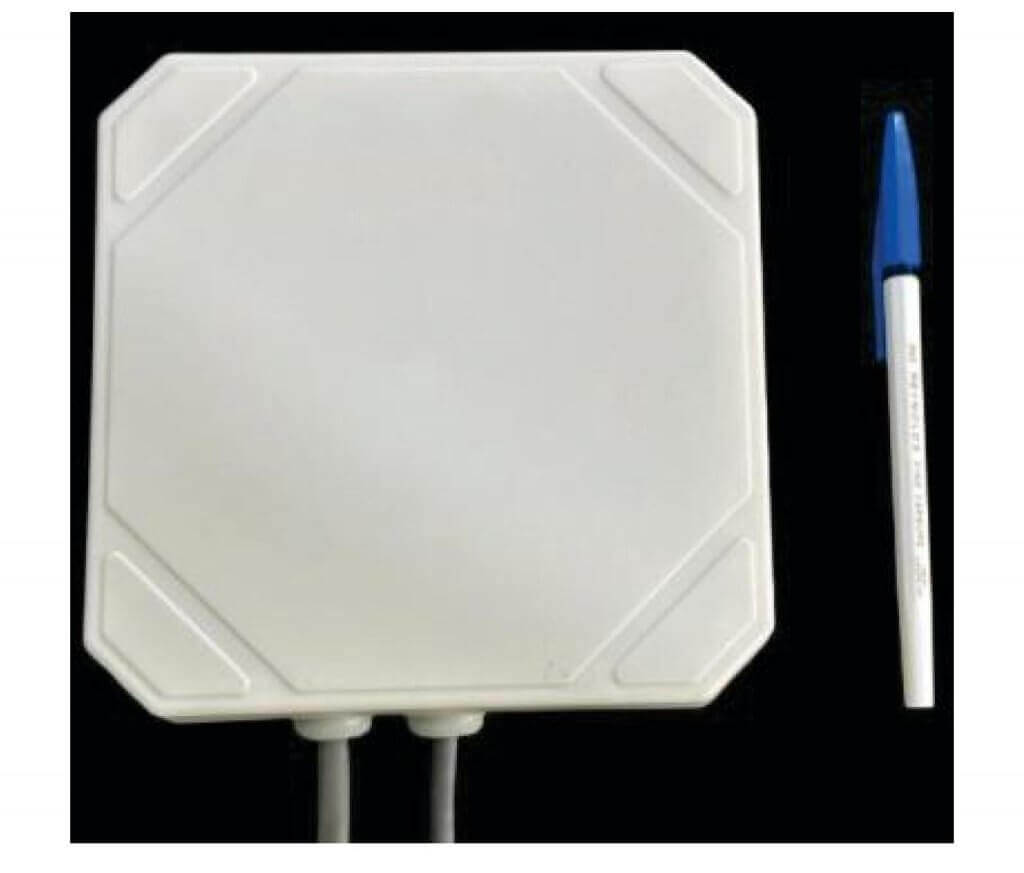

With internal 5 dBi circular polarized antenna, it is a low cost option. With smaller form factor, its replacement becomes easy at the time of installation.
Features:
- Based on Impinj E310 chip
- Robust Hardware design
- Read range up to 6 meters
- 5 dBi circular polarized antenna
- Trigger based activation mode
- Supports auto inventory mode
- SDK and integration support available
- Various interface options such as Ethernet and Wiegand
Application:
- Custom Applications
- Parking management
- Weigh bridge automation
- Mid-range Applications
- Supply chain management
Technical Specifications
| Product Code | RRUHFR03M |
|---|---|
| Operating Frequency | 865 to 867 MHz |
| Power Supply | 9 to 30 V DC |
| Transmitting Power | Up to 30 dBm (Software adjustable) |
| Read Range* | Up to 6 m |
| Antenna | Internal (5 dBi) |
| Communication Interface | Ethernet / Wiegand |
| Supported Transponders | EPC Class1 Gen2 (ISO 18000-6C) |
| Indicators | Buzzer as audio indicator |
| Operating Temperature | 0°C to +65°C |
| Mounting Accessories | Included |
| Relay | 2 relays |
| Dimensions | 145 x 145 x 55 mm |
| Weight | 0.65Kgs approx. |
| Packaging Material | ABS Plastic, Die-cast aluminum |
| Color | White |
| *Read range is dependant on tag size and design | |
