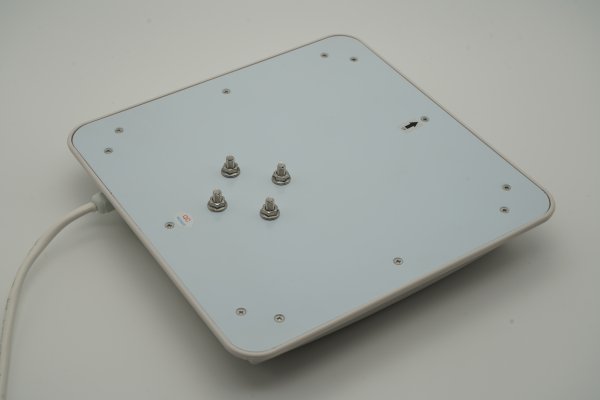

RFID UHF Integrated Reader -RRUHFR03
Description
RRUHFR03 is a UHF Integrated RFID Reader operating at 865 to 867 MHz. It works with an internal antenna and reads ISO 18000-6C Tags.
With an internal 9 dBi antenna, it is a low cost option. With a smaller form factor, its placement becomes easy at the time of installation.
Features:
- Based on Impinj E310 chip
- Small form factor
- Read range up to 10 meters
- 9 dBi circular polarized antenna
- Supports auto inventory mode
- SDK and integration support available
- Various interface options such as Ethernet / RS232/ Wiegand/ Wifi (opional) Bluetooth (optional)
Application:
- Parking management
- Weigh bridge automation
- SDK and integration support available
- Factory automation
- Customized applications
Technical Specifications
| Product Code | RRUHFR03 |
|---|---|
| Operating Frequency | 865-867 MHz |
| Power Supply | 9 V to 30 V DC |
| Transmitting Power | upto 30 dBm Software adjustable |
| Read Range* | Up to 10 m |
| Standard / Protocols | EPC Class1 Gen2 (ISO 18000-6C) |
| Temperature | 0°C to +65°C |
| Antenna & Polarization | Internal (9 dBi) |
| Communication Interface | Ethernet / RS232/ Wiegand/ Wifi (opional) Bluetooth (optional) |
| Material | ABS Plastic & Die casted aluminum |
| Size (in mm) | 270*270*80(mm) |
Downloads
| Sr. No. | Type | Description | Download | Upload Date |
|---|---|---|---|---|
| 1 | Datasheet | Google Drive link |  |
27th Feb 2025 |
| 2 | SDK | Google Drive link |  |
28th Mar 2024 |
| 3 | SDK Manual | Google Drive link | |
2nd Feb 2025 |
| 4 | Communication Protocol | Google Drive link | |
2nd Feb 2025 |
