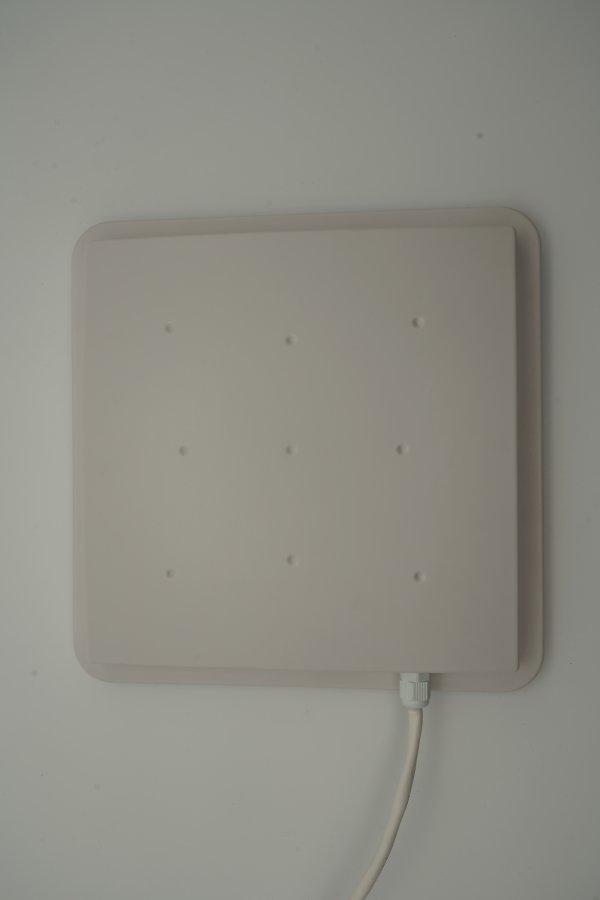

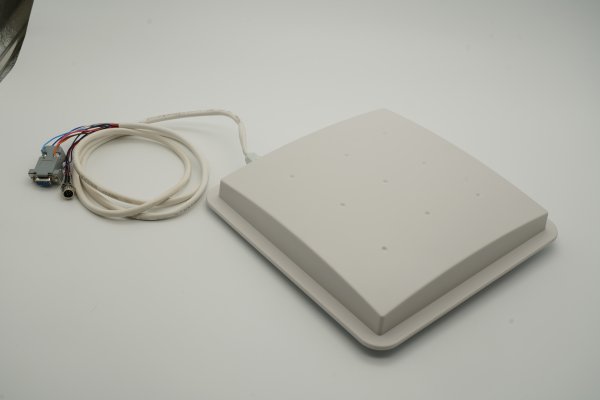

High Performance UHF Reader (RRUHFR03R)
Description
RRUHFR03R is a High Performance UHF Integrated RFID Reader operating at 865 to 867 MHz. It works with an internal antenna and reads ISO 18000-6C tags.
The reader works on industry leading latest Impinj E710 chip. With smaller form factor, its placement becomes easy at the time of installation.
Features:
- Based on Impinj E710 chip
- Small form factor
- Read range up to 15 meters
- 9 dBi circular polarized antenna
- Supports auto inventory mode
- SDK and integration support available
- Various interface options such as Ethernet and Wi-fi (optional)
Application:
- Parking management
- Weigh bridge automation
- Toll booth applications
- Factory automation
- Customized applications
Technical Specifications
| Product Code | RRUHFR03R |
|---|---|
| Material | ABS Plastic |
| Colour | White |
| Power Supply | 9 to 32 V DC |
| Thickness | 80mm |
| Size (in mm) | 270mm X 270mm X 80mm |
| Operating Frequency | 865-867 MHz |
| Standard / Protocols | EPC Class1 Gen2 (ISO 18000-6C) |
| Temparature | 0°C to +50°C |
| Communication Interface | Ethernet / Wifi (opional) / Bluetooth (optional) |
Downloads
| Sr. No. | Type | Description | Download | Upload Date |
|---|---|---|---|---|
| 1 | Datasheet | Google Drive link |  |
20th Mar 2024 |
| 2 | SDK | Google Drive link |  |
28th Mar 2024 |
